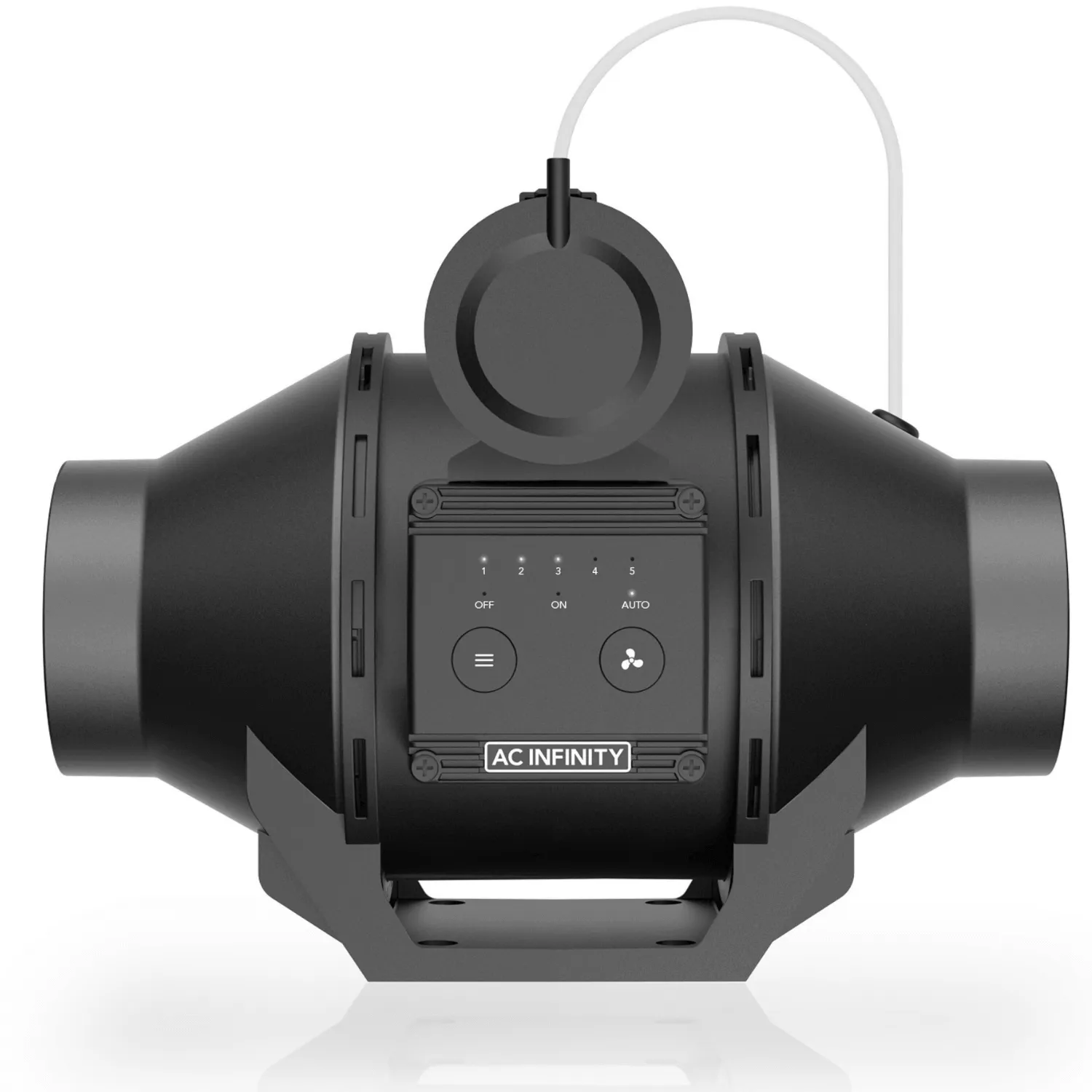

Name: AC Infinity Automatic Booster Duct Fan, Inline Fan with Pressure Switch, 4-Inch
SKU: 435999

Description

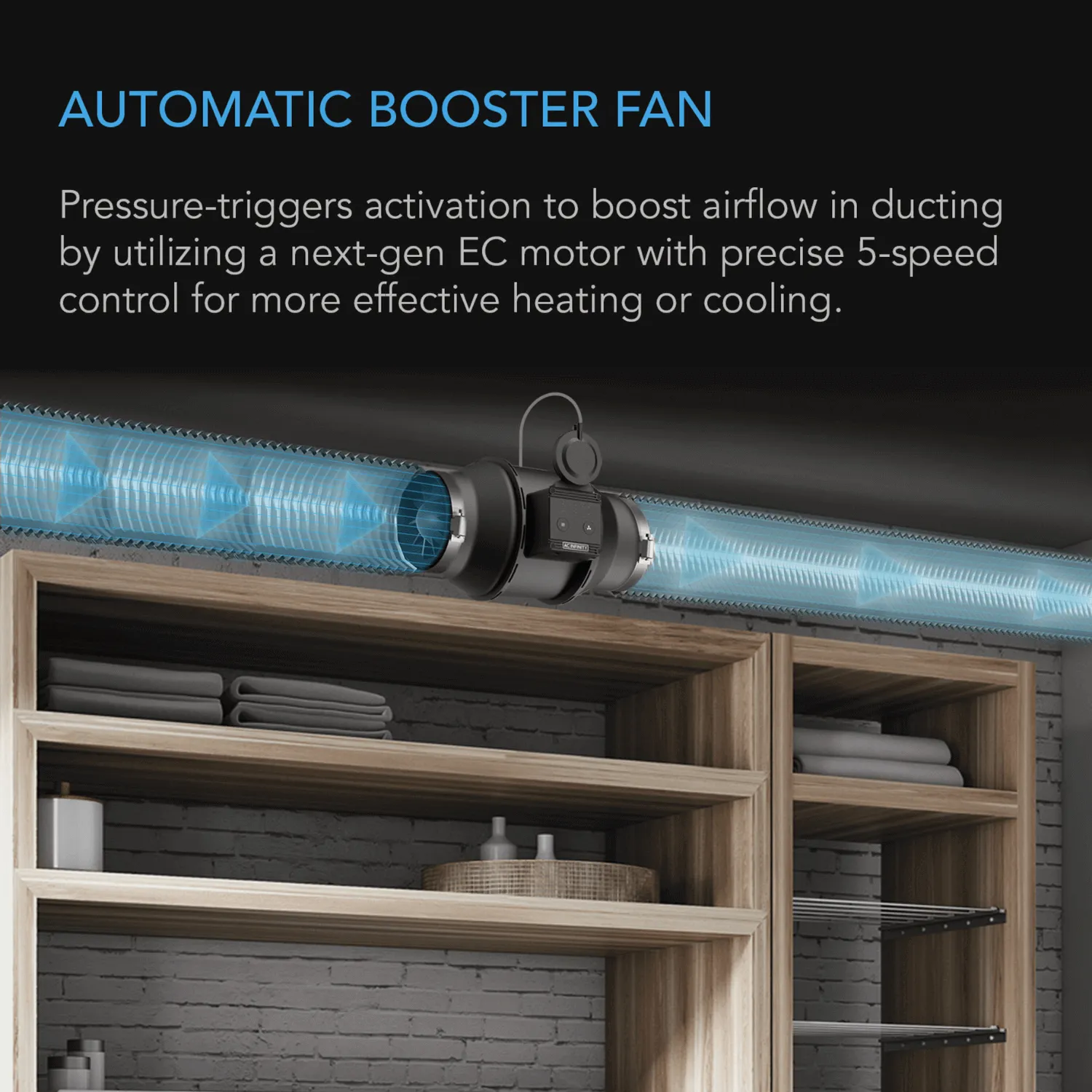

Inline Duct Fan: Designed to boost airflow in ducting and vent systems, ensuring effective delivery of heating or cooling. This automatic fan activates upon detecting pressure change, removing the need for manual adjustments.

Differential Pressure Switch: This enables the fan to be mounted in any position to enhance directional airflow versatility. It senses changes in your ducting and operates the on/off activation automatically, making it versatile for extended ducting and other difficult-to-reach spaces.

Features: The fan has five speed levels, powered by a PWM-controlled EC motor for more precise ventilation. It is sized for a 4" duct and provides an airflow of 230 CFM. It operates at a noise level of 60 dBA, using dual ball bearings. The dimensions are 11.88 x 9.11 x 9.25 inches.

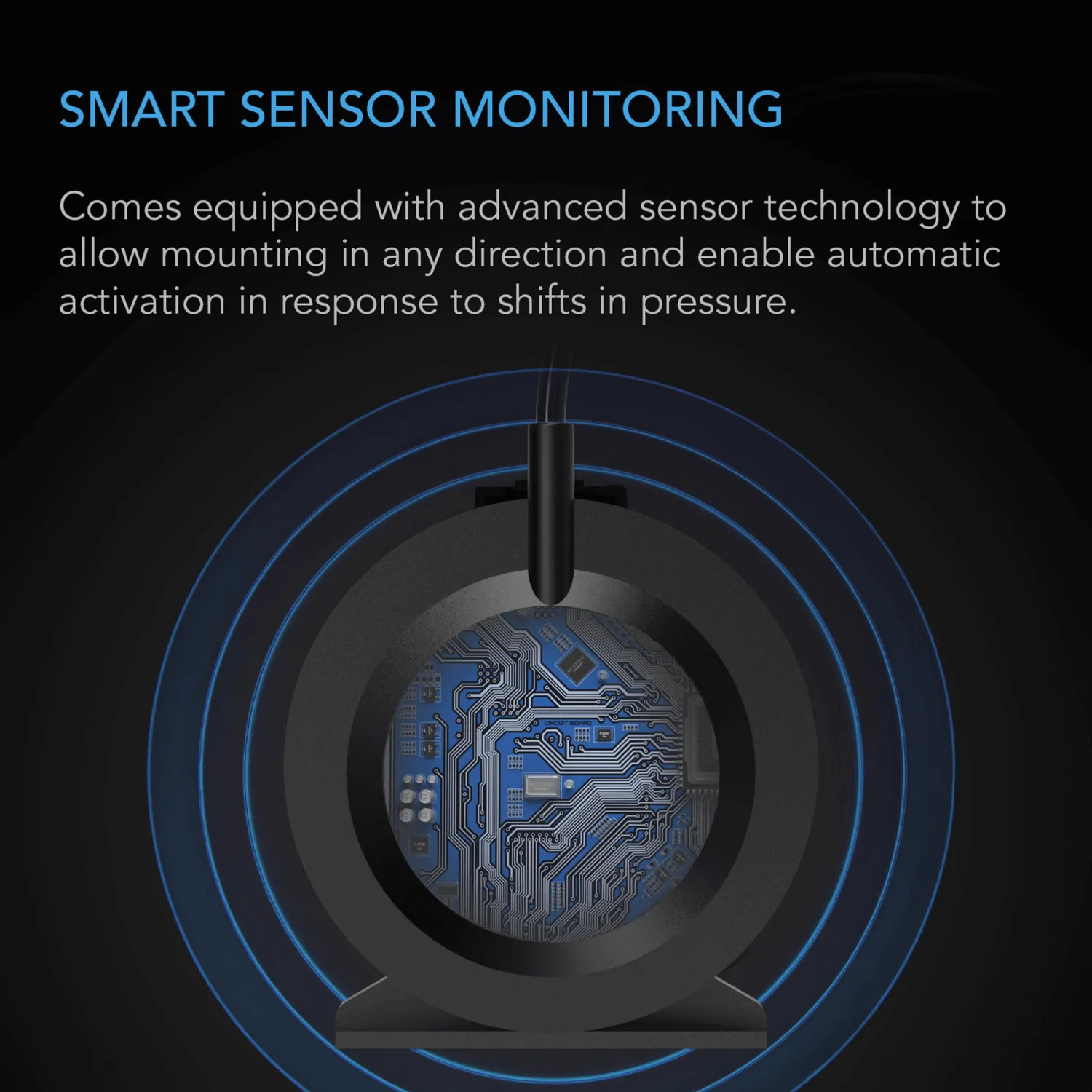

Automatic Pressure Sensing: The fan switch provides automatic activation capabilities to enhance your heating or cooling on demand, by detecting pressure change in your ducting and activating when your home appliance is on.

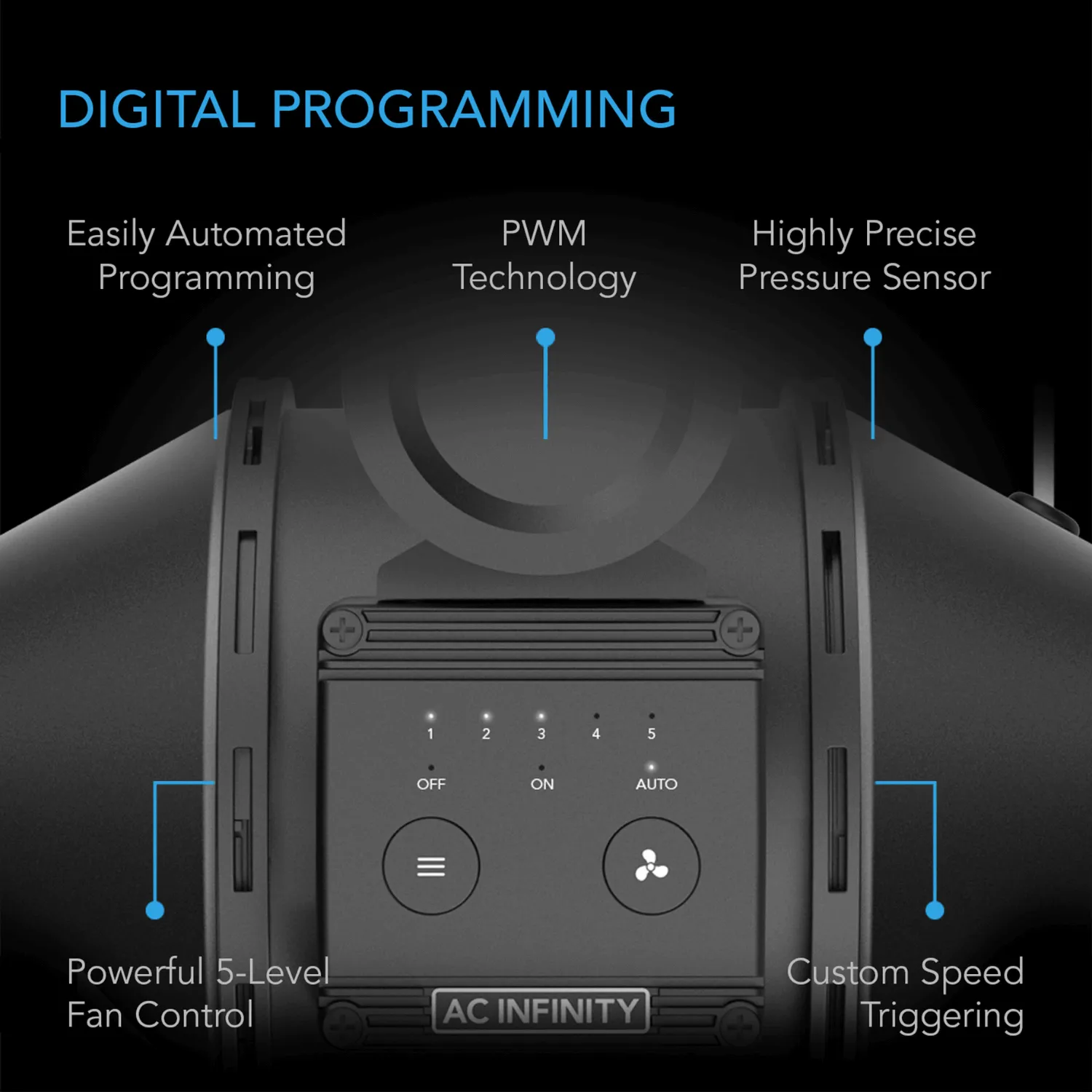

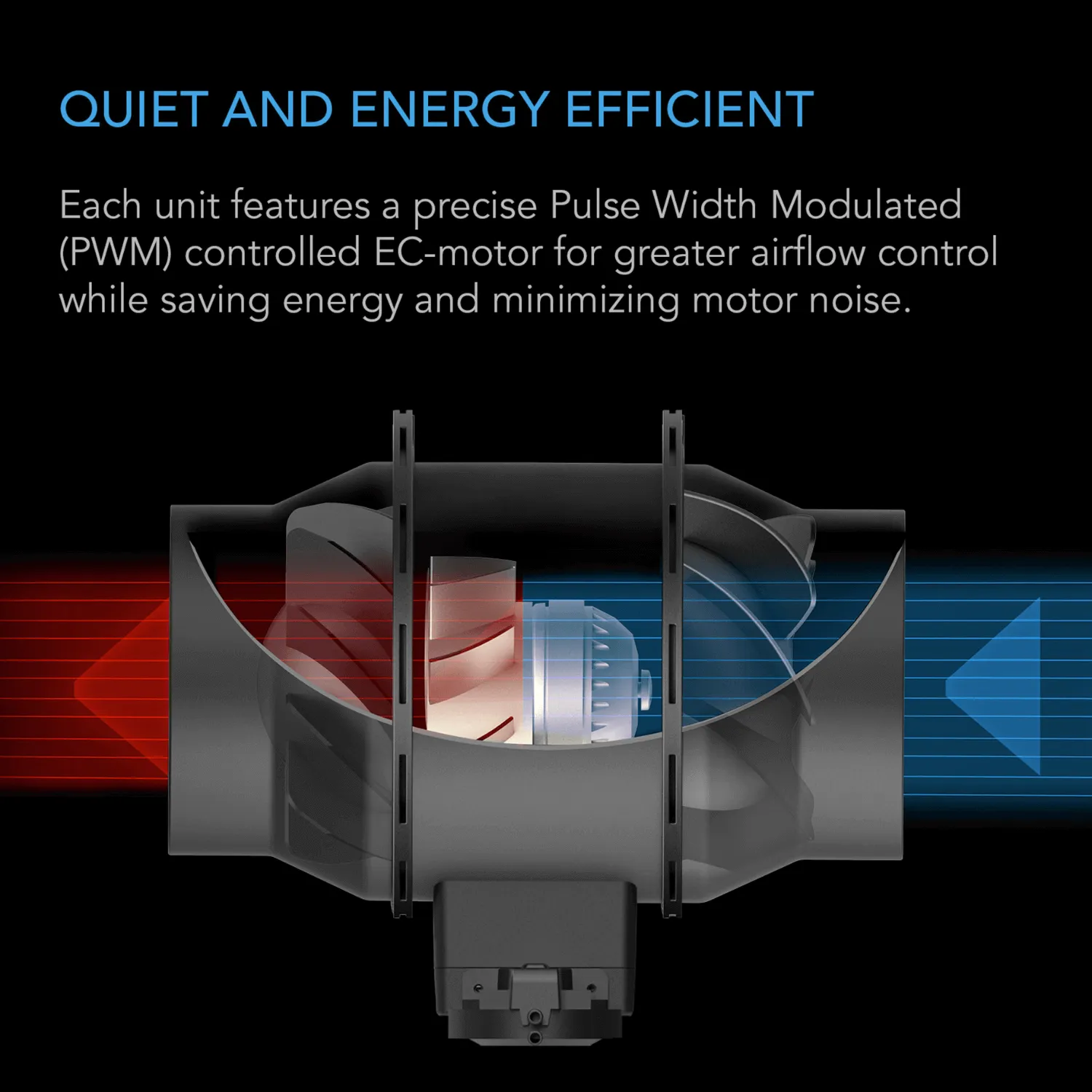

Quiet, Energy Efficient Design: The fan features a next-generation EC motor that powers quiet and energy-efficient performance. The motor is controlled with PWM technology to ensure smooth performance while minimizing heat and noise levels.

High Static Pressure Rating: The mixed flow design gives this booster fan a high static pressure rating to enhance airflow in applications with restricted air movement. It's suitable for both industrial settings and residential settings.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Automatic Duct Fan 4"

Product Model: AC-BFP4

UPC Code: 819137023789

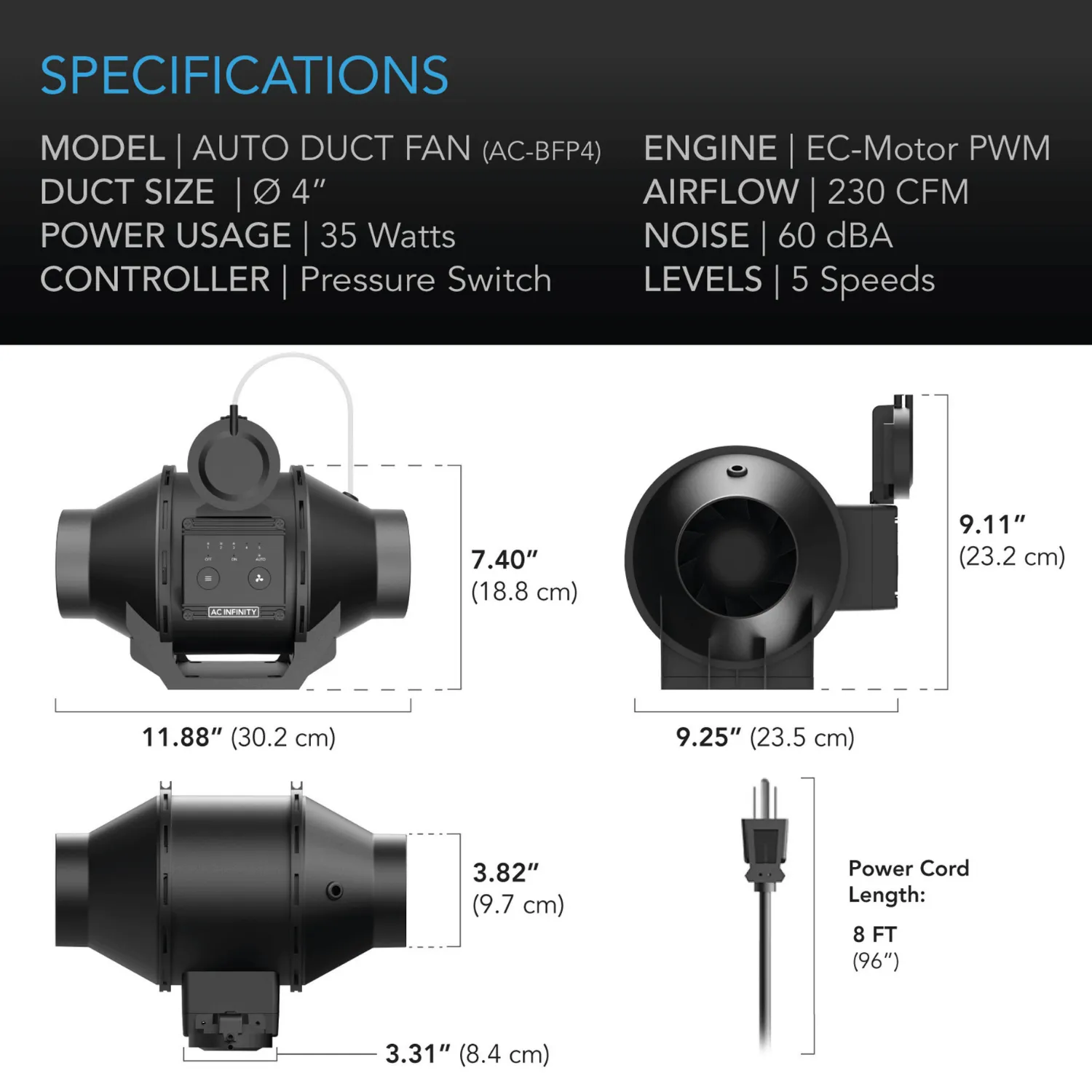

Product and Mounting Dimensions - Fan Unit

Duct Size: 4"

Total Dimensions: 11.88 x 9.11 x 9.25 in. (30.2 x 23.2 x 23.5 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Size: Ø 0.197 in. (Ø 0.5 cm)

Product Performance and Technical Specs

Total Airflow: 230 CFM

Total Noise: 60 dBA

Max Speed: 3000 RPM

Static Pressure: 248 Pa

Pressure Detection Range: 0-100 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 35 W

Current: 0.55 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
