Name: AC Infinity AXIAL 8038, Muffin 120V AC Cooling Fan, 80mm x 80mm x 38mm, Low Speed
SKU: 386581

Description

Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.

UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.

Low Speed: Has a lower noise and airflow rating than high-speed models.

80 x 80 x 38 mm (3.2 x 3.2 x 1.5 in.) | 100 to 125V AC | Airflow: 23 CFM | Noise: 28 dBA | Speed: 2000 RPM

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 80-millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903, and also CE and RoHS certified.

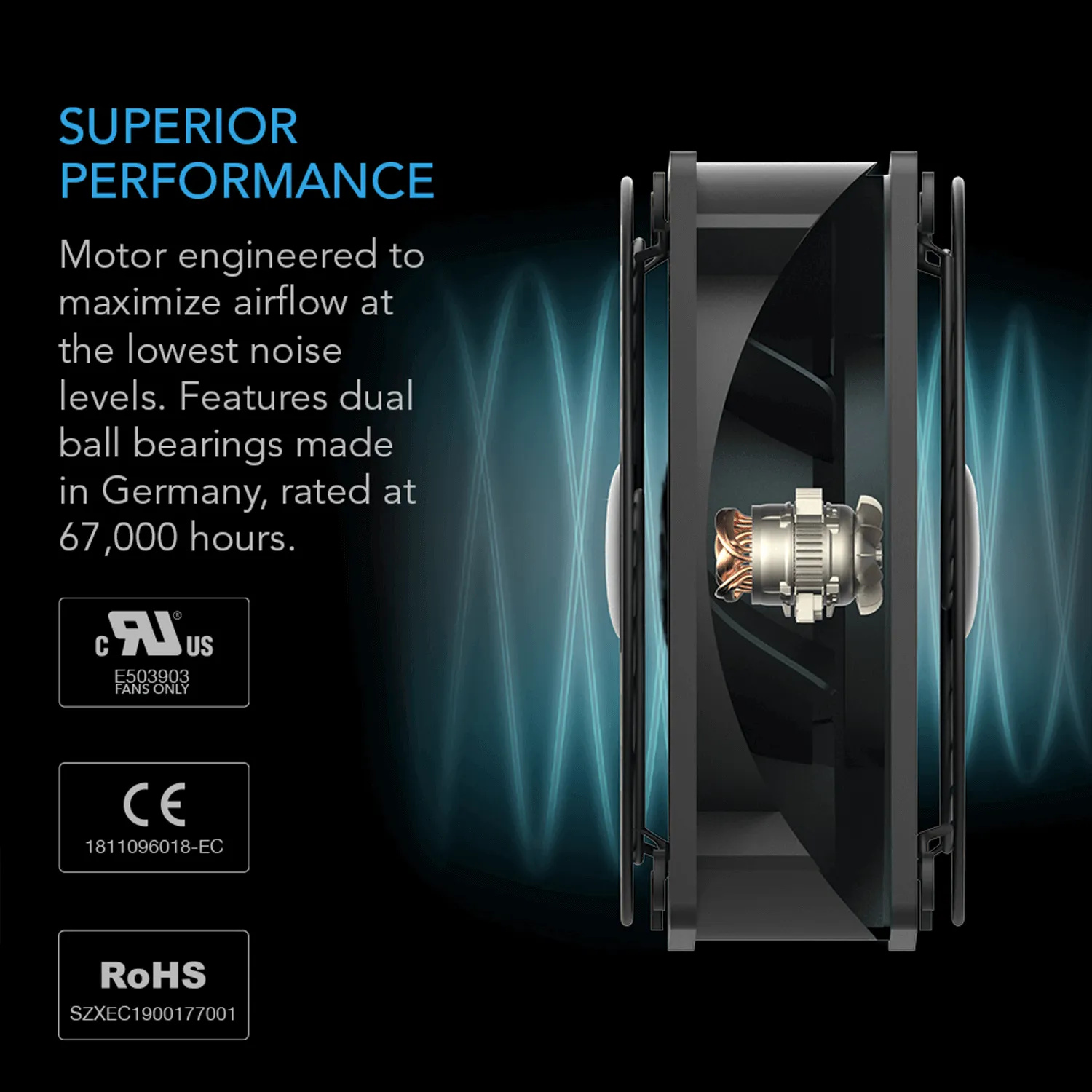

The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. Containing long-life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

This low-speed fan is suitable for applications that require a lower noise level and can accept weaker airflow. Popular uses include theater cabinets, woodstove heaters, room-to-room doorways, amplifiers, kegerators, and more. Because this is a standard industrial-size fan, it can be used to replace fans found in various electronics and machinery.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL 8038

Product Model: LS8038A-X

UPC Code: 854759004273

Product Dimensions

Total Dimensions: 3.15 x 3.15 x 1.5 in. (8.0 x 8.0 x 3.8 cm)

Hole to Hole Distance: 2.81 x 2.81 in. (7.2 x 7.2 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Fan Model: LS8038A

Total Airflow: 23 CFM

Total Noise: 28 dBA

Speed: 2000 RPM

Operating Voltage: 100 to 125V AC

Power: 7 W

Current: 0.06 A

Static Pressure: 4.4 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
