Name: AC Infinity CLOUDWAY S12, Whole House EC Fan, 1600 CFM, Energy Efficient with Wireless Controller
SKU: 382082

Description

Whole House Attic Fan: Carefully designed to cool and ventilate entire homes by exhausting hot air from indoor spaces via a 10-speed wireless controller with backup memory which helps remotely adjust fan speed and optimizes airflow.

Sophisticated Technology: Our product utilizes a PWM-controlled EC motor that promotes quieter operation and enhanced energy efficiency, far outshining most fans on the market. The fan also boasts two-door shutters with a damper that effectively prevents attic air from entering living spaces when the fan is not running.

Sizing and Specs: Duct Size: 12 inches | Dimensions: 12.3 x 17.7 x 14.1 inches | Airflow: 1604 CFM | Noise: 62 dBA | Bearings: Dual Ball.

Product Description: This whole house fan system is ideal for installation in attics to keep homes cool. It exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. A wireless remote control allowing adjustment of the fan speed up to 10 levels, enabling convenient optimization of desired cooling and noise levels across your home. The kit includes 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter.

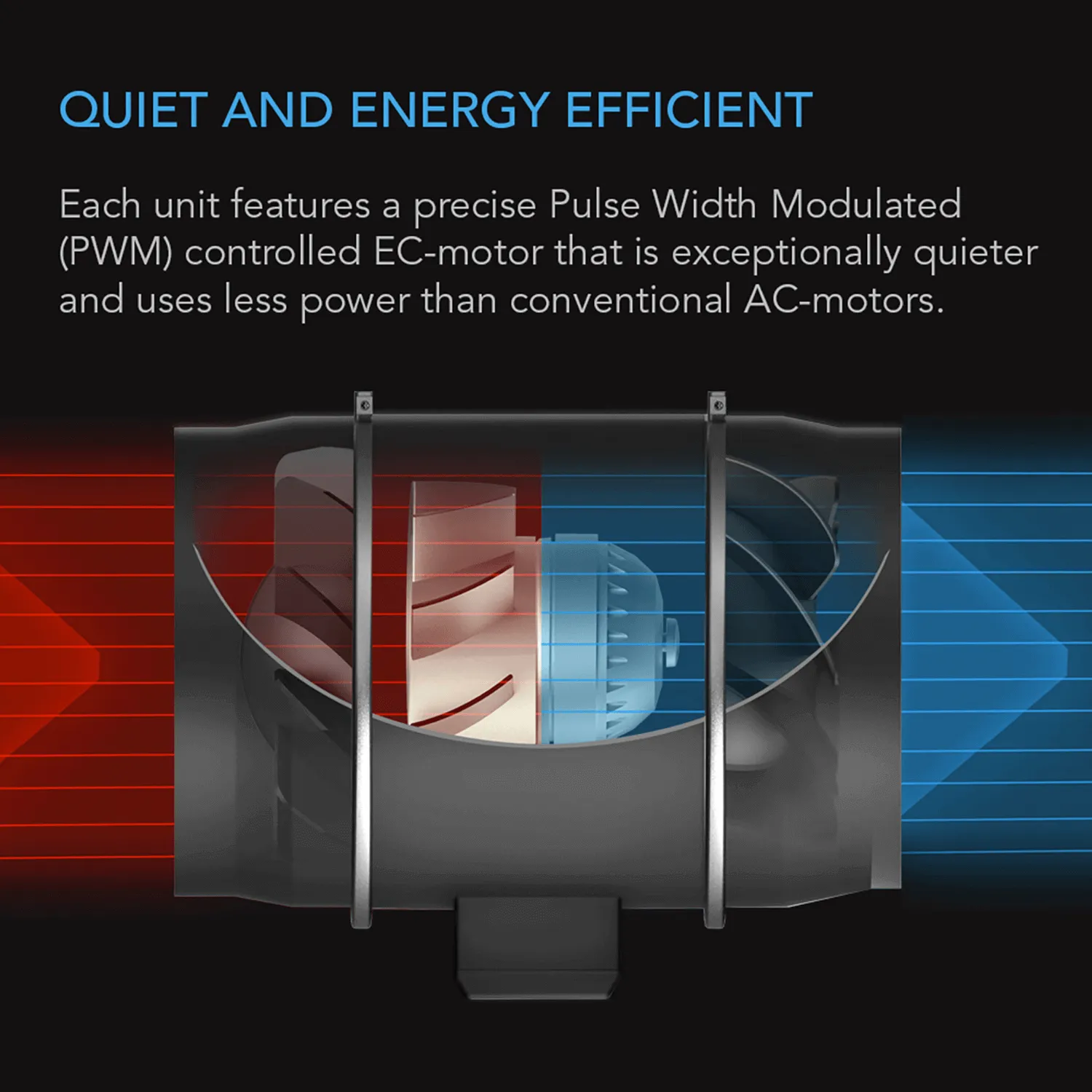

Next-Gen EC Motor: Featuring a state-of-the-art Electr??ically Commutated (EC) motor that is digitally controlled using precise electronic pulses. This PWM technology allows the fan to operate quieter and control the full range from 0 to 100% speed without generating excessive heat or noise. EC motors are 40% more energy-efficient and have twice the lifespan than conventional AC motors.

Efficient Performance: Boasting a 50,000-hour lifespan for continuous run, this attic fan uses dual ball bearings allowing omnidirectional mounting. It is also IP-44 rated to resist dust and moisture while performing efficiently in most humid environments. The insulated damper uses gravity-fed shutters to close the opening when the fan is not in use, preventing attic air from entering your home.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDWAY S12

Product Model: AC-CRS12

UPC Code: 819137023048

Product and Mounting Dimensions - Fan Unit

Duct Size: 12 inches

Duct Tube Length: 5 feet

Total Dimensions: 12.28 x 17.71 x 14.05 inches (31.2 x 45.0 x 35.7 cm)

Mounting Hole-To-Hole Distance: 7.00 x 7.12 inches (17.8 x 18.1 cm)

Screw Hole Size: Ø 0.462 inches (Ø 1.18 cm)

Cord Length to Controller: 240 inches (20 feet)

Cord Length to Plug: 96 inches (8 feet)

Product and Mounting Dimensions - Controller

Controller Dimensions: 3.59 x 1.37 x 0.75 inches (9.1 x 3.5 x 1.9 cm)

Receiver Dimensions: 1.14 x 1.57 x 0.59 inches (2.9 x 4.0 x 1.5 cm)

Mounting Hole Size: Ø 0.25 inches (Ø 6.5 mm)

Product Performance and Technical Specs

Total Airflow: 1604 CFM

Total Noise: 62 dBA

Static Pressure: 818 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 250 W

Average Power Usage: 139 W

Current: 2.5 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Wall Adapter Input: 100 to 120V AC

Operating Humidity: 35 to 85% RH

Operating Temperature: 0 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the CE Certification:

Download the RoHS Certification:
