Name: AC Infinity IONFRAME EVO8 730W Samsung LM301H EVO Commercial LED Grow Light 5 x 5 Ft
SKU: 397944

Description

Unmatched LED Efficiency: The light comes embedded with the Samsung LM301H EVO LEDs, achieving a remarkable 3.14 umol/J PPE efficiency. This sets a new bar, outshining the LM301B, LM301H, and the Bridgelux 3030 chips in terms of performance.

Innovative Control Suite: Designed with a set of schedule controls, sunrise/sunset dimming, and 10 variable brightness levels. With UIS™ platform compatibility, it extends the convenience of WiFi app controls to the users.

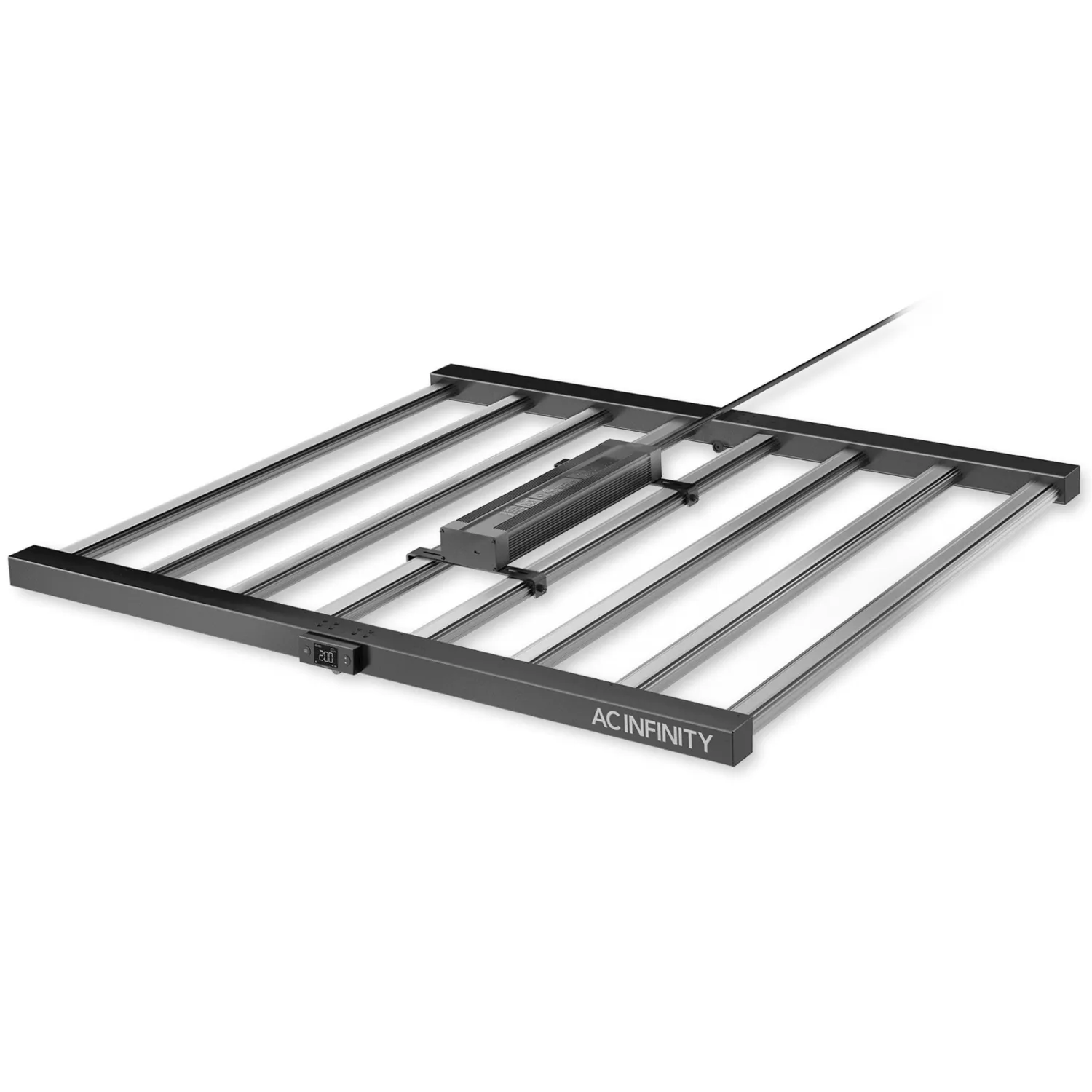

Efficient Lighting Design: Crafted in a bar-style structure, the diodes are strategically and algorithmically placed. This design ensures uniform coverage, superior canopy penetration, and a marked reduction in hotspots. It's a paradigm shift in lighting precision.

Advanced Heat Management: Features a detachable passive cooling LED driver, allowing for remote positioning to optimize heat dispersion. The system’s daisy-chaining ability supports linkage with up to 80 grow lights, promising scalability in your grow space.

Comprehensive Coverage: Designed for larger grow spaces, it illuminates a 6 x 6 ft. zone for vegetation and a 5 x 5 ft. space for flowering. Embedded with 2688 Samsung LM301H EVO Chips, it runs at 730W and offers a significant 2013 PPFD. Further assuring users of its quality, it's certified according to ETL standards (cert. #5021417).

Rugged Construction: Meticulously built using steel and aluminum, this fixture supports magnetic mounting. With an IP-65 certification, it promises resilience against humid conditions, making it an apt choice for varied grow environments.

Forefront of LED Technology: The IONFRAME prides itself on the Samsung LM301H EVO diodes, known for their exceptional brightness and efficiency. Outdoing previous generation LEDs, they’re further complemented by UV and OSRAM red diodes, ensuring a comprehensive full-spectrum light output.

Sophisticated Scheduling System: The incorporated schedule controller can autonomously modulate the light based on the time, offering a dynamic light cycle that mimics natural solar transitions. For an elevated experience, integrating with the UIS CONTROLLER 69 PRO on the UIS platform unlocks additional controls, automation options, and intricate programming capabilities through the AC Infinity app.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: IONFRAME EVO8

Product Model: AC-IF8K

UPC Code: 819137024076

Product and Mounting Dimensions

Light Dimensions: 44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)

Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

Product Performance and Technical Specs

Coverage: 5 x 5 ft.

Diodes: Samsung LM301H EVO

Spectrum: 395nm, 660nm, 3000K, 5000K

Chip Count (Total): 2688

Chip Count (EVO 3000K): 1720

Chip Count (EVO 5000K): 864

Chip Count (Seoul 395 nm): 8

Chip Count (OSRAM 660 nm): 88

Chip Count (OSRAM 730 nm): 8

LED Driver: SOSEN-730W

Efficiency (Single Diode): 3.14 umol/J

PPFD: 2013 PPFD

Wattage: 730 W

Voltage: 100-277V AC

Frequency: 50/60 Hz

Amps: 7.3 A

Controller: Schedule Controller

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Waterproof Rating: IP-65

Life Expectancy: 50,000 Hours

Data Sheets

Download the data sheet:

Download the ETL Certification:
